Fits JK 0-3.0 " Lift Front Tera44 R44 Rubicon Axle with 4.88 Ring and Pinion and OEM Locker For 0...
  • Free shipping

        Fits JK 0-3.0 " Lift Front Tera44 R44 Rubicon Axle with 4.88 Ring and Pinion and OEM Locker For 07-18 Jeep JK/JKU Wrangler TeraFlex


        0.0
        TeraFlex
          • 10% less
          Market price: $5298.46, you save $503.47
        • $4794.99

        OR

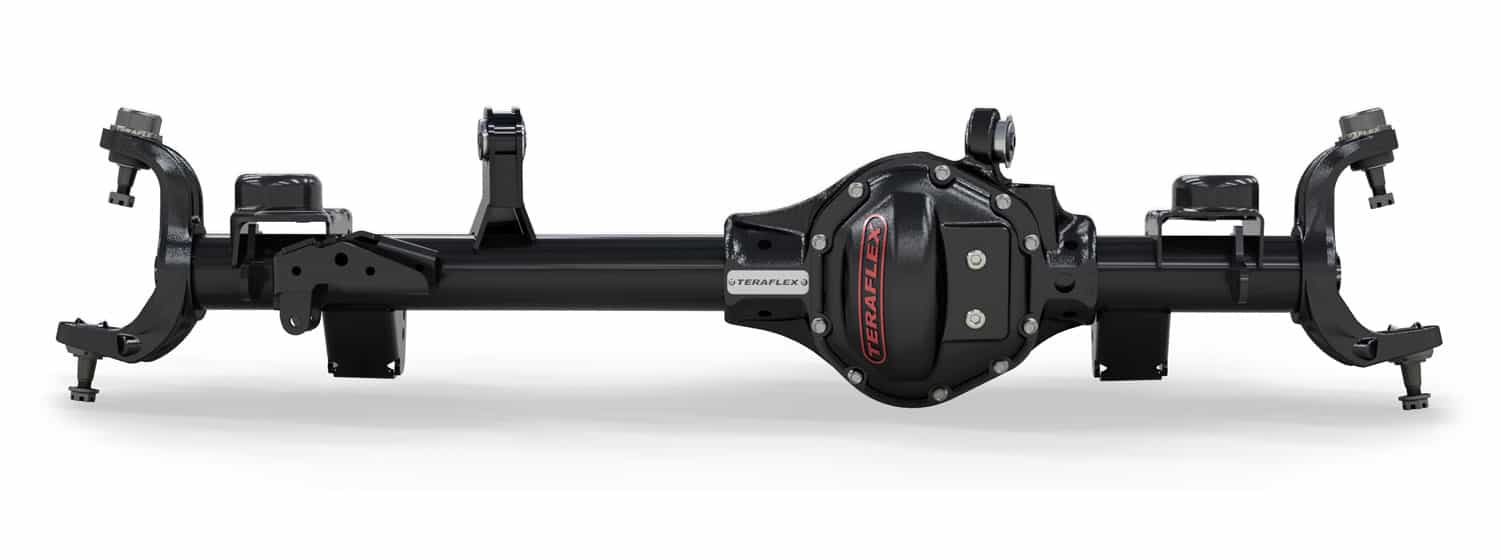

        TeraFlex JK Front Tera44 R44 Rubicon Replacement Axle Housings include a heavy-duty housing with axle tubes, bracketry, and forged inner knuckles, pre-installed inner seals and upper control arm bushings as well as OEM Rubicon locker, choice of Spicer ring and pinion gear ratio, Spicer bearings and install kits, TeraFlex heavy-duty ball joints, and factory yoke.

        Simply swap over axle shafts, outer knuckles, outer axle assembly, unit bearings, brakes and sensors. The comprehensive assembly makes swapping axle housings a true DIY process!

        TeraFlex heavy-duty JK Front Tera44 R44 Rubicon Replacement Axle Housings are perfect for replacing bent, broken, or damaged front axles in JK Wrangler and Rubicon vehicles. Can also be used as a direct bolt-on upgrade for JK Wrangler owners looking to beef up the front axle's weak areas.
        Fits:

        • JK Wrangler Rubicon (2-door) - front
        • JKU Wrangler Unlimited Rubicon (4-door) - front

        Includes:

        • OEM Rubicon locker
        • Spicer ring and pinion - 4.88
        • Spicer bearings and install kits
        • TeraFlex HD ball joints
        • Factory yoke

        Features:

        • 3.25 inch O.D. x 0.5 inch wall axle tube increases strength to resist bending and torsion w/ minimal weight increase
        • Pre-installed inner axle seals
        • Forged HD inner knuckles w/ greater upper and lower section strength
        • Ductile cast iron housing w/ increased rib gussets
        • HD ductile iron differential cover
        • Asymmetric housing design, for extra-long tube side strength
        • Smooth radius bottom design to glide over rocks and obstacles
        • Integrated lower flexarm skid plates
        • Bottom oil drain hole for simple fluid changes
        • Premium UV protected triple-stage powder coat process for superior corrosion resistance
        • 1/4 inch-thick CNC laser cut axle brackets for extreme strength
        • Integrated factory location upper control arm mount
        • Pre-installed upper control arm bushings
        • Reinforced front track bar mount (ties into spring pad) for greater strength
        • Proper pinion angle for lifted JK applications
        • Pre-tapped hole on spring perch for bump stop extensions
        • Pre-drilled holes for limit straps and lower spring retainers
        • Retains all JK ESP, ABS, and speedometer sensor capability
        • 100 percent engineered, designed, and built in the USA
        • 100 percent new components
        • 1-Year/Unlimited Mileage Warranty
        • Lift Height: 0-3.0 inch
        • Width: 67 inch WMS-WMS (stock)
        • Axle Tube: 3.25 inch x 0.5 inch
        • Ring and Pinion: 4.88
        • Install Time: 6 Hours

        Note:

        • The R44 axle works w/ factory axle shafts and Rubicon locker (part number 68017176AA) or part number OX D44-JKR-30 locker. The ARB RD157 locker or the # OX D44-JKR-30 locker can be used w/ new 35 spline axle shafts.

        Requirements:

        • Control Arm Upgrade
          • 0-3 inch Lift: This axle is a direct bolt-on upgrade! Although stock control arms will work at this Lift height, aftermarket flexarms may be used if desired - highly recommended w/ a 3 inch Lift.
          • 0-3 inch Lift: This axle is a direct bolt-on upgrade! Although stock control arms will work at this Lift height, aftermarket flexarms may be used if desired - highly recommended w/ a 3 inch Lift.
          • Front upper (part number 1252200) and front lower (part number 1252000) TeraFlex JK Sport Flexarms will work w/ 2.5-3 inch lifts.
          • Front upper (part number 1415520) and front lower (part number 1415500) TeraFlex JK adjustable Alpine Flexarms will work w/ 2.5-4 inch lifts.
          • Front upper (part number 1315520) and front lower (part number 1315500) TeraFlex JK adjustable Alpine Long Flexarms will work w/ 3-6 inch lifts.
        • Axle Shaft Upgrade
          • 0-6 inch Lift: High-quality aftermarket axle shafts will enhance your set up. We recommend RCV or TEN Factory high-end shafts. Stock Rubicon axle shafts may also be reused.
        • Axle Shaft Tube Seal Upgrade
          • 0-6 inch Lift: Get serious with HD 0.5 inch wall seals (part number 4354050) or keep it real with standard 0.25 inch wall seals (part number 4354025). Stock seals may also be reused.
        • Steering System Upgrade
          • 0-3 inch Lift: The JK HD Tie Rod and Drag Link Steering Kit (part number 1853900) will do the trick, though the stock steering system may be reused.
        • Brake Upgrade
          • 0-6 inch Lift: Experience a notable difference w/ a TeraFlex Big Brake Kit (part number 4303400 or part number 4303420) or JK Big Rotor Kit (part number 4303480 or part number 4303490).
          • SKU
            TER3524488
          • Weight
            265 lbs
          • Barcode
            843995048202
          • Manufacturer Part #
            3524488
        • Manufacturer
          TeraFlex
        • ASIN
          n
        • Brand
          TeraFlex
        • Configurator Products
          No
        • Configurator Status
          No
        • Covercraft Status
          No
        • Disable loading on additional products
          No
        • Disallow Use of Coupons
          No
        • GUID
          AB-3524488-PRM
        • MPN
          3524488
        • Part Number_333224
          3524488
        • Select Featured
          No
        • UPC
          843995048202
