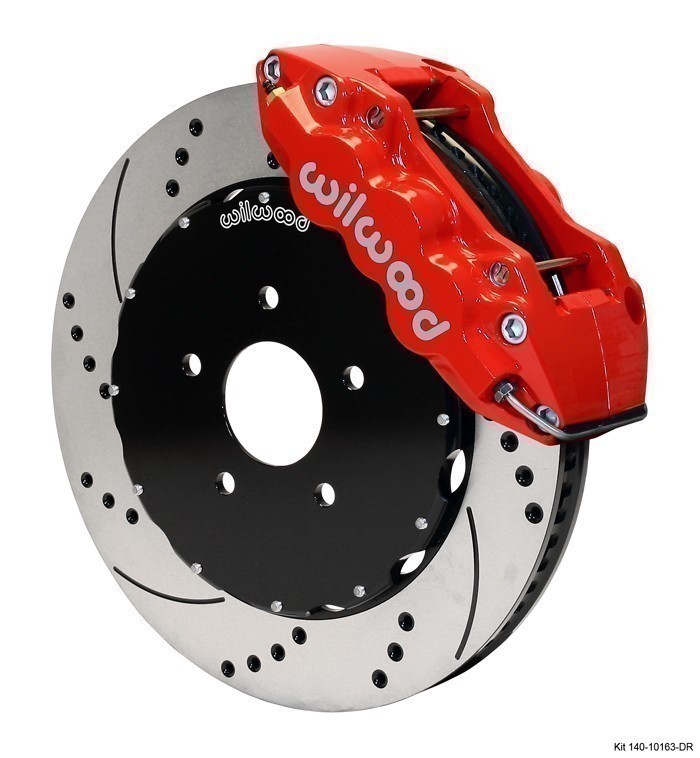

C6 Corvette Wilwood Front Big Brake Kit
  • Free shipping
  • Hot New Products

        C6 Corvette Wilwood Front Big Brake Kit

        2005-2013 C6 Corvette Wilwood W6A Front Brake Kit

        W6A Wilwood Big Brake Front Brake Kit

        Pistons: 6 Rotor Diameter:14.25 Caliper Mount: Radial Min. Wheel Diameter: 18
        Compatible with the
        Chevrolet Chevrolet C6 Corvette 2010-2011
        Cadilac XLR 2005-2009 All
        Chevrolet Chevrolet C6 Corvette C-5 1997-2004 All C-5 & ZO6
        Chevrolet Chevrolet C6 Corvette C-6 2005-2009 All C-6 & ZO6

        The C6 Corvette engineers were developing more horsepower out of the new LS engines in 2005, so they wanted to build the ultimate C6 Corvette. The Previous generation C6 Corvette grew in size and weight, so they wanted to make the new C6 Corvette smaller and lighter. The body was redesigned with exposed headlights to remove the weight involved in building a hideaway headlight system. Engine power was also increased to 400 horsepower, the same as the previous years Z06. The new Z06 horsepower was increased to 505 and the ZR1 C6 Corvette would have over 600 horsepower. Obviously, all of the new C6 Corvettes are performers so Wilwood offers several brake improvement kits. If you track your C6 Corvette, Wilwood offers a W6A Big Brake Front Brake Kit (Race) and a matching rear kit. This system can withstand the rigors of heavy track action. Increased braking for the street and track can be obtained with the Superlite 6R Big Brake Front Brake Kit with 13.06 or 14-inch rotors. Matching rear brakes with Superlite 4R calipers are also available. Wilwood also offers high-performance brake pads for the original C6 Corvette calipers and they provide a substantial brake improvement.
        Wilwood W6AR calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with a wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.25” rotors provide maximum cooling for sustained high heat durability.
        Calipers
        W6A Radial Mount
        The W6A forged six-piston caliper delivers heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, two options for piston volume, and a rotor diameter ranging from 12.19" to 14.25" give this caliper the versatility necessary to suit all types of heavyweight braking requirements.
        The W6A body is the product of FEA computer design and stress flow forging technology. FEA technology allows the designer to test the prototype in a computer environment to determine the optimal structural design within the dimensional parameters of the component. Stress flow forging produces a part with the internal grain structure of the metal aligned in the direction of the flow of the body contour. The results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.
        This caliper generates big brake clamping force with six differential bore stainless steel pistons. Stainless steel is used for its high resistance to corrosion and low thermal conductivity that reduces the heat transfer from the pads. The differential bore pattern balances pad loading to help maintain even pad wear. High-temperature bore seals provide long service life and maintain their resilience to provide positive piston retraction on release. Two options for overall piston volume make it simple to match the calipers with master cylinder output and rear caliper size for correct bias proportioning.
        The performance of the W6A is enhanced with SRS bridge plates, snap-ring locked pad retainer pins, recessed two-piece bleed screw assemblies and dampen mounted fluid transfer tubes. SRS bridge plates eliminate all bridge wear caused by pad gouging. The spring-loaded action of the plates also eliminates pad rattle. Snap ring clips lock the pad pins in place to provide positive retention and allow easy service without caliper removal. The bleed screws are recess mounted for protection against impact and debris. The fluid tubes are dampen mounted to protect them from fatigue or damage from vibration or debris. Calipers are anodized in high luster black to protect from corrosion and maintain their high-tech appearance. The W6A is also available with a gloss red finish or other custom Wilwood color by order.
        Radial-mount adapter brackets are used in Wilwood brake kits to provide a secure and precise method of attaching the W6A caliper to the factory mount bosses on the original spindle.
        Rotors
        SRP Drilled Performance Rotor
        SRP Drilled Performance Rotors feature a specially engineered directional cross drill and face slot pattern that improve brake response and pad performance throughout the entire range of light to heavy braking. The venting and cleaning action of the holes and slots will reduce pad glaze and disperse gasses and heat generated during the pad to rotor interface. The holes and slots also inhibit irregular pad compound build-up on the rotor faces resulting in smoother engagement and improved pedal response in all conditions. The material removed also contributes to lower rotating and unsprung suspension weight.
        Along with the excellent performance characteristics of this rotor design, each rotor is treated with a black electro-coat to inhibit corrosion on all areas of the rotor. The high tech design, classic style, and aesthetic appeal of the SRP series are the perfect finishing touches to any wheel and tire detail.
        SRP rotors are available in all popular sizes used in Wilwood's Pro Series and Big Brake conversion kits. Kits in these categories designated with the drilled rotor option get the SRP as standard equipment.
        Rotor Hats
        Big Brake - Short Offset
        GT Series Big Brake Short Offset hats are precision machined from premium aluminum alloys for high strength and attention to minimized weight. Hats in this category feature threaded rotor mount holes for use with standard through-hole mount rotors. Threaded hole hats may also be used with T-Nuts or bobbins designed for use with specially machined slotted hole dynamic mount rotors. When used in conjunction with matched Wilwood rotor hardware kits, GT hats provide solid, reliable performance in the most demanding conditions. Short Offset Hats are for narrow space applications with offsets often less than 1.00". They are available for most rotor bolt patterns in a variety of four and five lug wheel patterns.
        Shallow Offset Hats are for narrow space applications with offsets often less than 1.00". They are available for most rotor bolt patterns in a variety of four and five lug wheel patterns.

        Check clearance diagram below to ensure proper fitment with your wheel application.

        Application: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 C6 Corvette, Z06

        .

        0.0
        Wilwood Brakes
          • 17% off
        • Market price:$2650.90 save $450.90
        • $2200.00

        OR
          • SKU
            140-163
          • Weight
            50 lbs
        • Manufacturer
          Wilwood Brakes
        • Configurator Products
          No
        • Configurator Status
          No
        • Covercraft Status
          No
        • Disable loading on additional products
          No
        • Disallow Use of Coupons
          No
        • MPN
          140-163
        • Part Number_333224
          140-163
        • Select Featured
          No
        • Rotor Type
          Slotted, Drilled-Slotted
        • Caliper Color
          Black, Red 503
