CORVETTE C6 EXHAUST BILLY BOAT B&B FUSION FCOR-0564
  • Free shipping
Next image

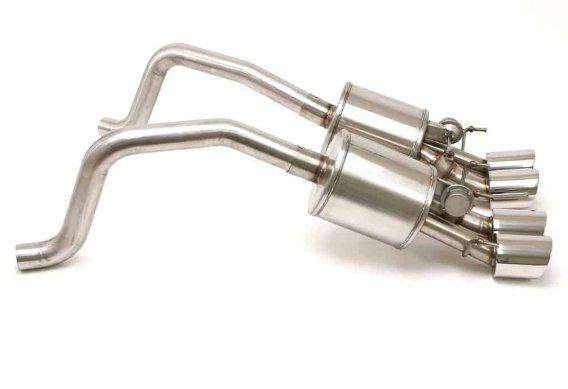

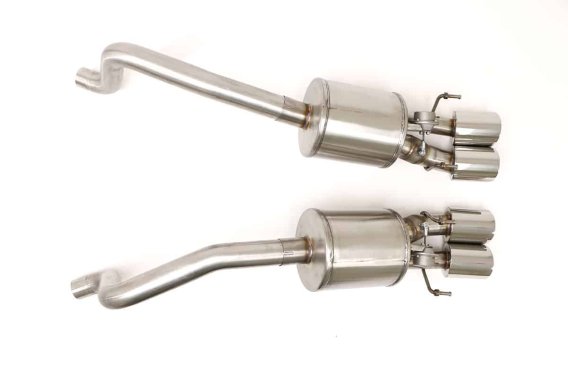

        C6 Corvette Exhaust Billy Boat B&B Fusion

        2009-2013 C6 Corvette Exhaust B&B Fusion System

        Please note: This item is sold at our rock bottom price, the best price in the world and we cannot discount further.


        This is the B&B C6 Fusion Quad Round 4" Tips for the C6 2009+
        For the C6 Corvette 2009+ with the NPP Multi-Mode Exhaust Option.

        Your choice of round 4" or oval 4.5" tips.

        What is bi-modal exhaust?

        The Fusion is a bi-modal exhaust system, meaning it has two passages, or modes, that the exhaust can travel through the muffler. Each of the mufflers has two outlets, with one side having a butterfly type valve which allows the exhaust flow to be shut off, regulating which side of the muffler the flows exhaust. One side of the muffler is the quiet side, and one side is the loud side. The quiet side is a smaller, muffled and chambered tube, while the loud side is 3" tubing straight through.

        corvette B&B fusion exhaust, corvette exhaust systemCorvette fusion exhaust system

        How loud is it?
        Through our development and customer feedback, we have shortened the muffler for 2008, making the loud side of the muffler louder, which results in a tone similar to the famous Bullet system. In the closed position, the tone would be slightly louder than the standard Route 66 system.

        What controls the valves?
        The butterfly is controlled by a vacuum valve, which we built and developed completely in-house. On the Z06 and the 2008 C6 with the NPP option, this valve is controlled by the ECU. The valve opens based on RPM and throttle position. The problem is the factory exhaust is very quiet, even with the valve open. Our expertise here at B&B is getting the tone right for your Corvette, and we think we nailed this one. Even in the closed position, the tone is deeper, louder, and more aggressive. Open the valves, the overall volume and tone increases to the point heads will turn when you drive up.

        What if I have a standard C6?
        Not everybody has a Z06 or 2008 with NPP, right? Billy Boat Performance Exhaust has spent months developing a stand-alone kit which allows any C6 to take advantage of the bi-modal system. The kit comes complete with all the wiring, mild-to-wild switch, vacuum line, vacuum accumulator, and vacuum switch needed for installation. We have used the engine as the vacuum source (it is the same port the factory uses for the NPP) and the installation is simple and straightforward.

        Is the system 2 1/2" or 3"?
        On the Corvette Z06, the Z06 BB Fusion System exhaust system is 3", while on the C6 it is 2 1/2". We do have an x-pipe available for both systems, and the standard C6 can be ordered in the 3" diameter to make a complete 3" system.

        Will they bolt up to my stock H pipe or my stock headers?
        Each part of the system will fit to a stock H-pipe or the stock headers. The parts can be mixed and matched (rear exhaust, x-pipe, and long tube headers) For best performance it is recommended to use the long tube headers, the 3" x-pipe, and the 3" Fusion.

        Billy Boat has combined the best of the Bullet exhaust with the best new technology to give you the Fusion System for your Corvette. The muffler tips are double walled, 4" round or 4.5" oval. The entire system comes completely polished and the result is a truly spectacular look and sound that gives this high performance sports car the look and aggressive sound which will have heads turning everywhere you go.

        All B&B products are precision built in rugged fixtures, completely TIG welded, and are a direct replacement for stock exhaust components and include all hardware and gaskets. No machining, no cutting and no welding means easy installation. We provide the perfect mix of performance, sound and style your Corvette . Each Billy Boat Performance Exhaust system is backed by a lifetime warranty against rust, corrosion or burn through and 2 full years against defects in materials or workmanship.

        Tips are available with your choice of polished Stainless Steel tips--which are finished to a gorgeous mirror like shine--, and new Black Satin Ceramic Coated Exhaust tips--for a more unique and aggressive modified appearance.

        Corvette Billy Boat Exhaust




        Southern Car Parts was the Sponsor of the Chad Boat #84 Toyota for the Chicago race back in 2013.... We've got a great business relationship with Billy Boat Exhaust and Southern Car Parts knows the B&B Product line better than anyone in the business. We stock many C5, C6 and C7 exhaust systems.

        Billy Boat Chad Boat Southern Car Parts

        Application: 2009, 2010, 2011, 2012, 2013 C6 Corvette

        0.0
          • 10% less
          Market price: $2228.25, you save $211.73
        • $2016.52

          • SKU
            FCOR-0564
          • Weight
            20 lbs
        • Manufacturer
          BB Exhaust
        • Configurator Products
          No
        • Configurator Status
          No
        • Covercraft Status
          No
        • Disable loading on additional products
          No
        • Disallow Use of Coupons
          No
        • MPN
          FCOR-0564
        • Part Number_333224
          FCOR-0564
        • Select Featured
          No
        • Tip Style
          Round FCOR-0564, Oval FCOR-0559
        • Options
          Polished Stainless Steel Exhaust Tips, Black Satin Ceramic Coated Exhaust Tips
